QMH 골판지 측벽 컨베이어 벨트는 크로스 강성베이스 벨트, 골판지 측벽 및 클리트로 구성됩니다. 0 ~ 90 도의 고 각성 재료 운송으로 가파른 앵글 컨베이어에 사용됩니다.
문의를 보내십시오The reinforced core can be made of materials such as polyester or nylon, providing high tensile strength. The cross rigid structure ensures stability and prevents deformation during high-angle conveying.
QMH Corrugated Sidewall Conveyor Belt is the only manufacturer who entirely taking full set of European Molds and standards for production in China. QMH offer complete solution includes belt selection, production, installation, commissioning and trouble shooting.

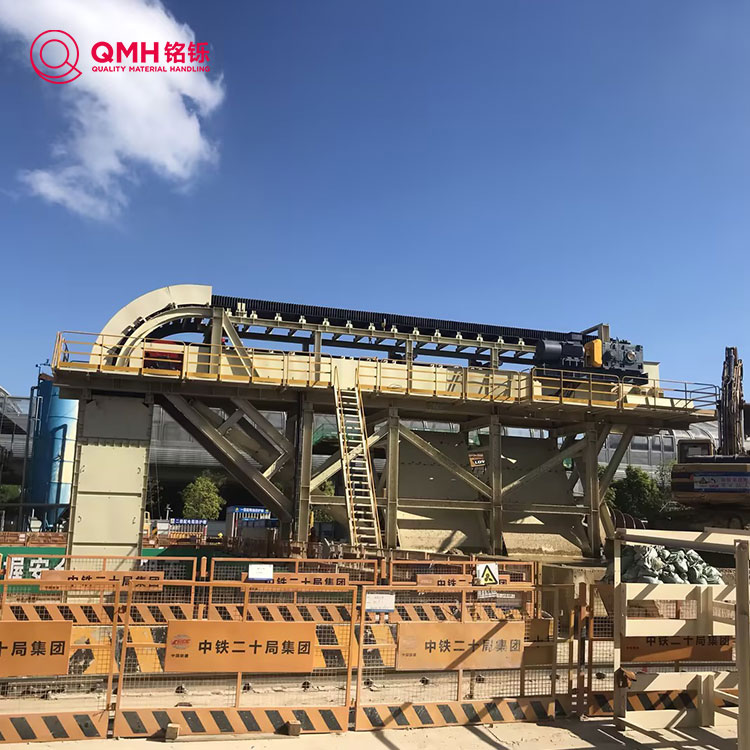

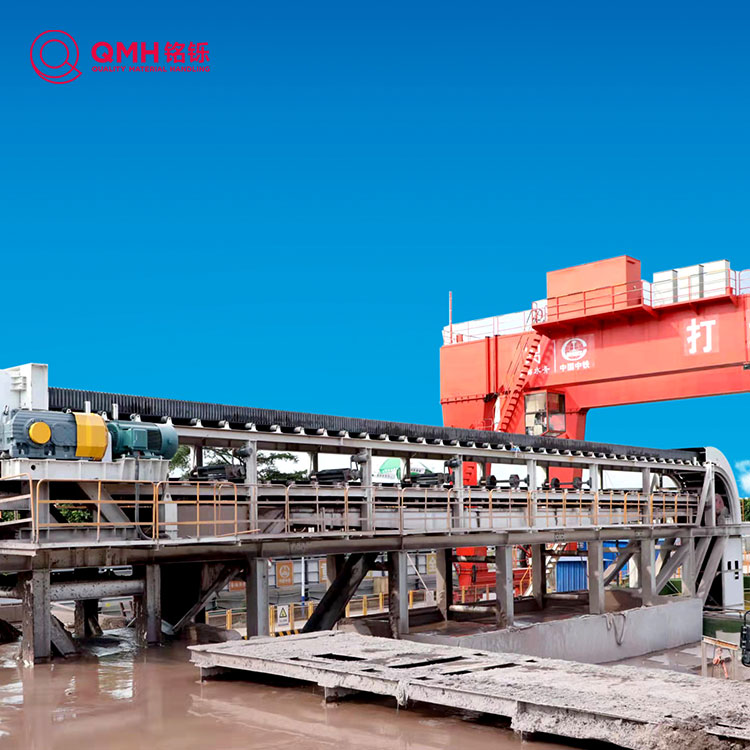

QMH Corrugated Sidewall Conveyor Belts serve a diverse range of industries, including ports, metallurgy, mining, chemicals, power plant, tunneling, cement, construction, recycling and agricultural, etc.
European Standard Process
Following international standards and European technologies.
Production Equipment
Industry leading complete intelligent production lines.
Long Service Life
Stable belting performance
Long service life
Market share of 5-year service life belts over 70%.
Footprint
Exported to over 50 countries and regions worldwide.
| Belt Width : | 300-2400mm |
| Sidewall Height : | 40-630mm |
| Cleat Height : | 35-600mm |
| Belt Strength : | 250-7500N/mm |
·The sidewall, cleat and base belt are hot vulcanized to achieve high adhesive value.
·Reliable bonding and excellent surface smoothness.
·Sidewall and cleat will not come off when high temperature.
| Bonding Method | Cold Bonding | Hot Bonding |
| Adhesion | ≥12N/mm | ＞17N/mm |

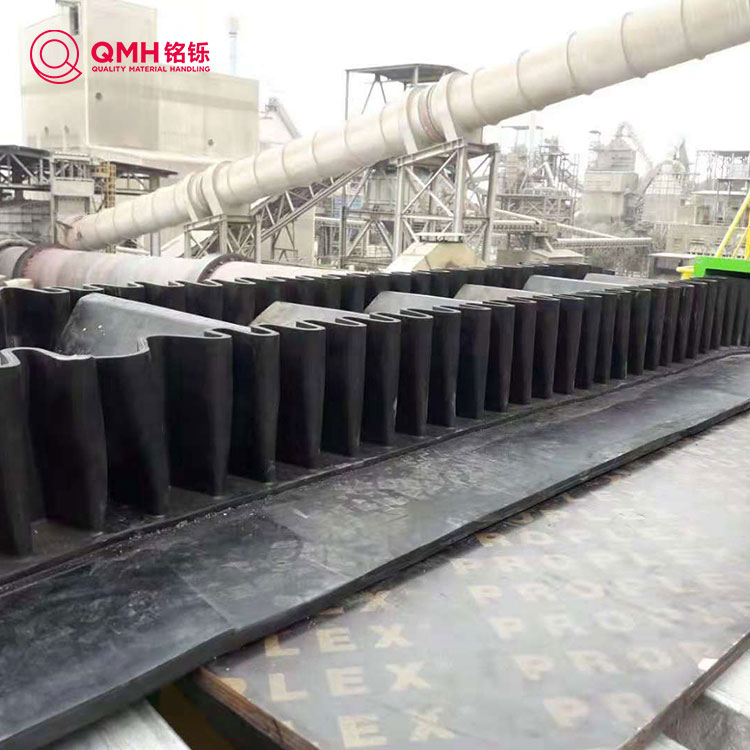

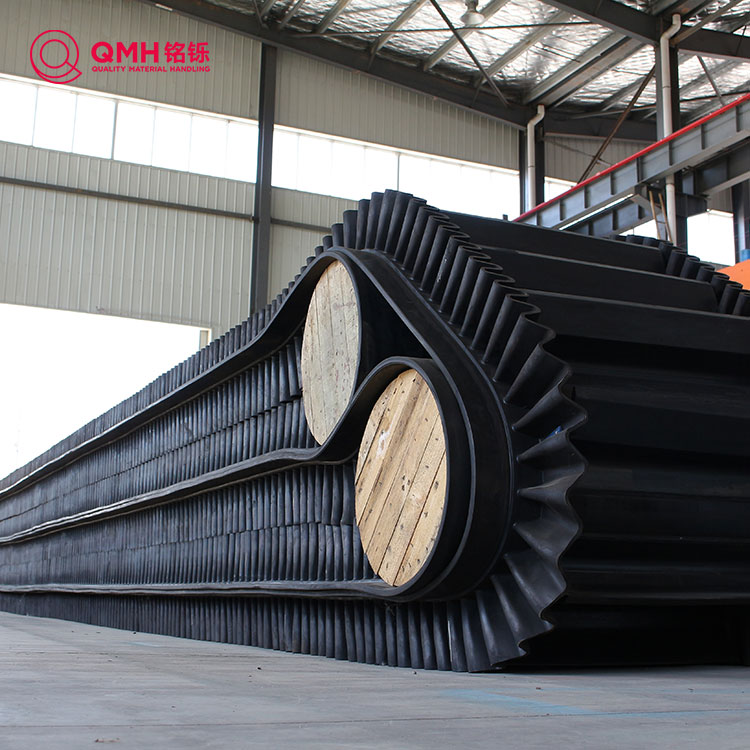

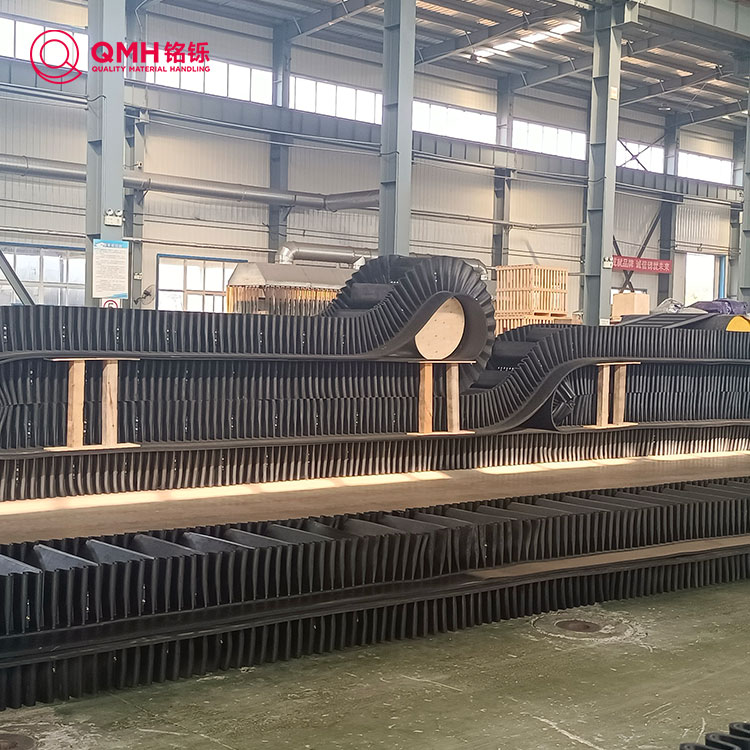

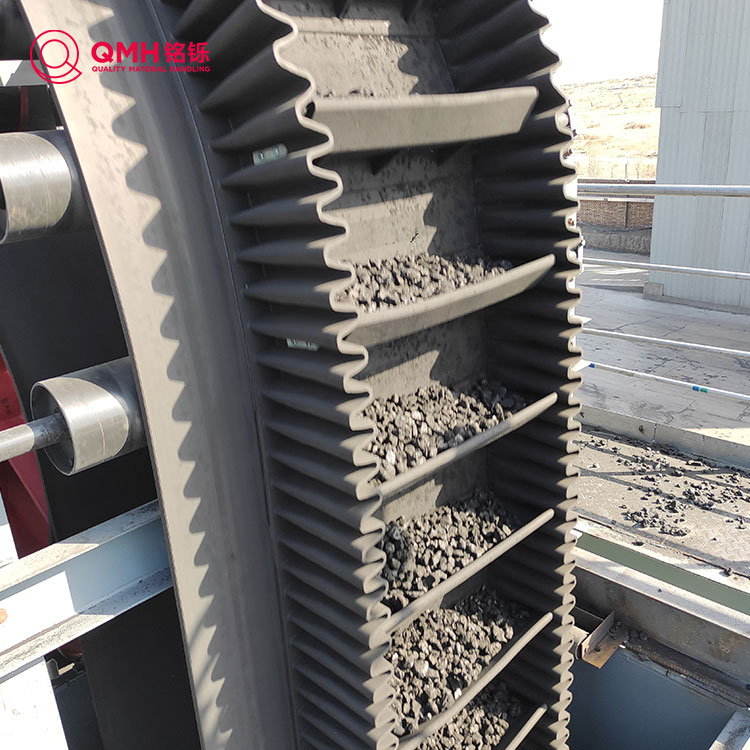

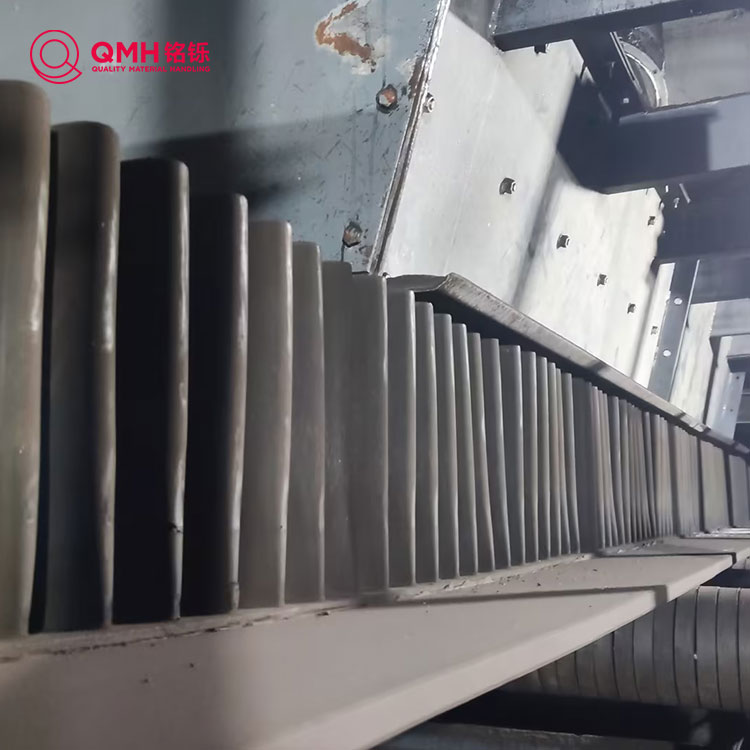

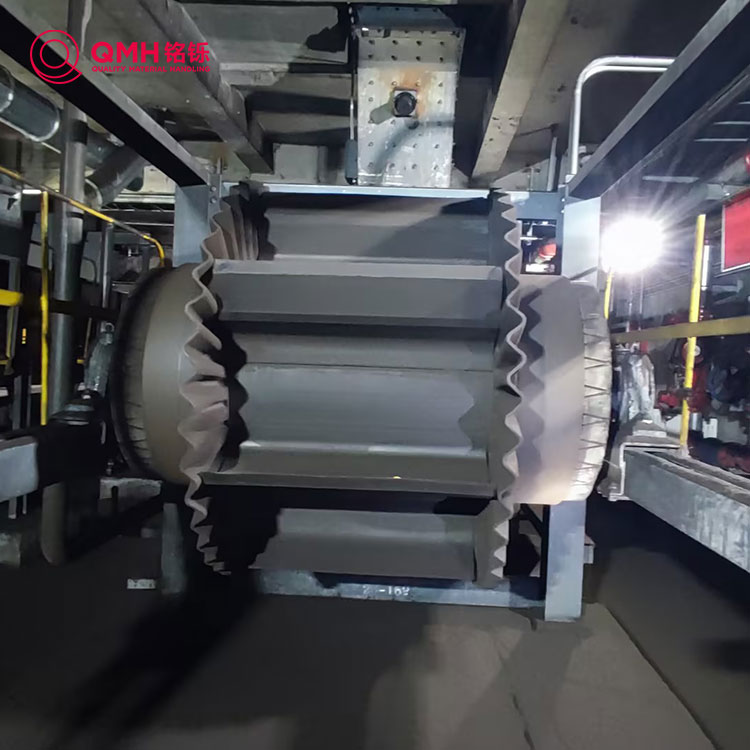

QMH corrugated sidewall conveyor belt consists of three main components: base belt, sidewall, and cleat. The sidewalls are designed in a wavy shape to prevent materials from sliding off the sides, while the cleat serve to support the materials being conveyed. These components are attached to the base belt through a secondary vulcanization process, ensuring high connection strength and durability.

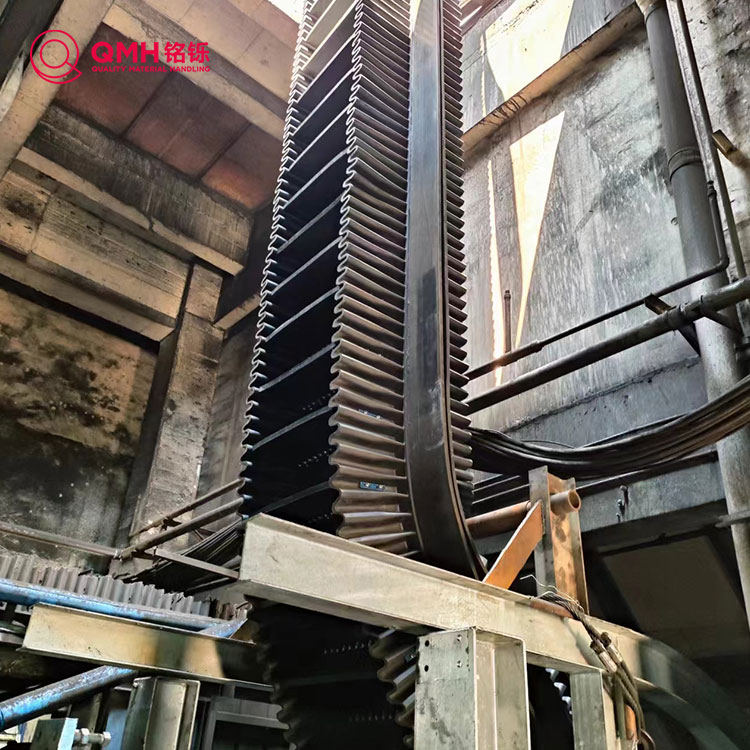

Large Conveying Angle: QMH corrugated sidewall conveyor belt is capable of conveying materials at angles ranging from 0° to 90°, solving the problem of insufficient conveying angles faced by ordinary or patterned conveyor belts.
Wide Range of Applications: It can be used in various industries such as ports, metallurgy, mining, power, coal, casting, building materials, grain, and fertilizer.
Compact Design: With a small footprint, it reduces the need for civil construction investment and maintenance costs.
High Conveying Capacity: It can handle a wide range of material sizes, from very small particles to large pieces up to 400mm, with conveying capacities ranging from 1 cubic meter per hour to 6000 cubic meters per hour.
Smooth Transition: It can transition smoothly from horizontal to inclined (or vertical) positions.
Cost-Effective and Long-lasting: The wedge belt is energy-efficient, structurally simple, and features high-strength rubber, ensuring a long service life.
Based on the performance of the covering rubber, QMH corrugated sidewall conveyor belt can be classified into various types such as ordinary, heat-resistant, cold-resistant, acid and alkali-resistant, oil-resistant and flame-retardant, etc. In terms of specifications, the belt core material can be made of ordinary cotton canvas, polyester cotton mixed canvas, nylon, polyester, steel cord, etc. The belt width can range from 400mm to 2400mm, with 2 to 10 layers of fabric and covering rubber thicknesses of 1.5 to 15mm on the working surface and 0 to 6mm on the non-working surface.
QMH corrugated sidewall conveyor belt is widely used for conveying bulk materials such as coal, ore, sand, fertilizer, and grain, etc. It can be designed as a complete and independent conveying system according to the usage environment, avoiding intermittent conveying and complex lifting systems.
